ChargerLAB Power-Z USB PD Tester Voltage Current Ripple Dual Type-C Meter KM001
5.0 (16 items)
Limited Time Sale$76.79 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216080175 | Release Date | 2026/04/19 | List Price | $51.20 | Model Number | 216080175 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

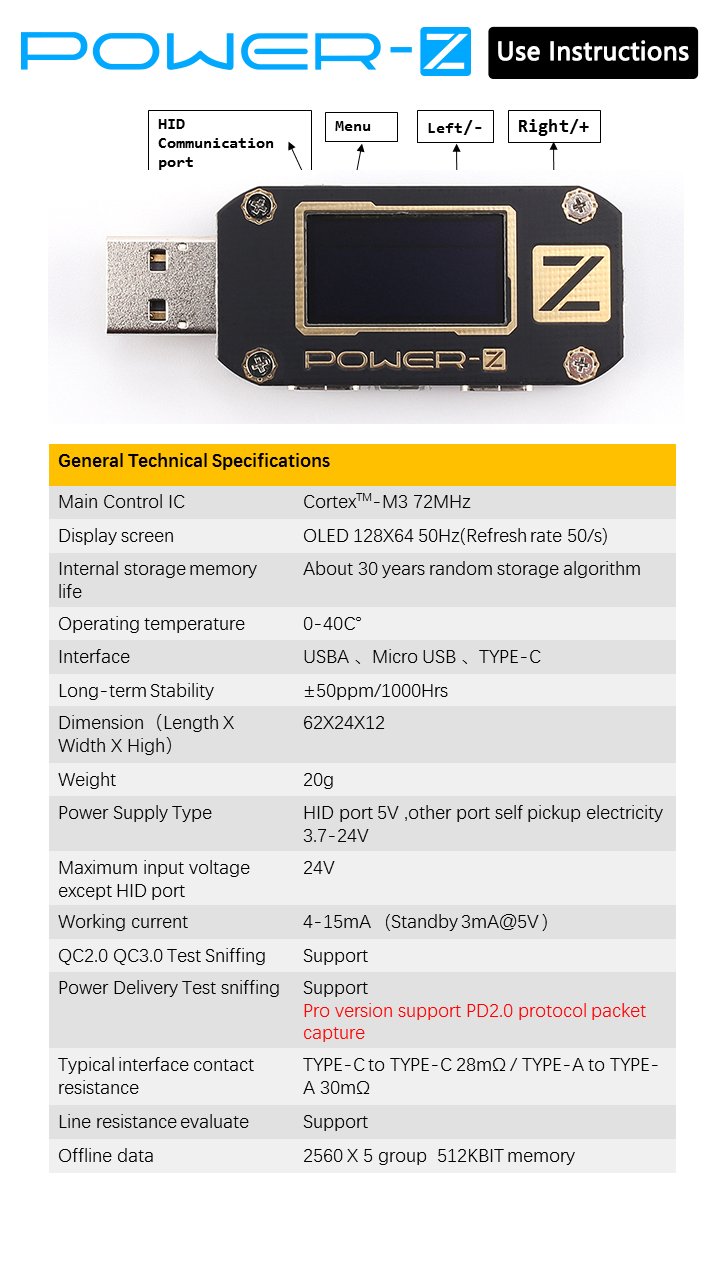

POWER-Z KM001 comes with an OLED screen resolution of 128 x 64. The front panel with black glass fiber gold-plated, four corners of the use of immersion gold hole fixed, the appearance and size of the USB table is no different from ordinary, ordinary users will soon be able to get started. USB table built-in a measurement accuracy of 0.02%, temperature drift for the 10ppm voltage and current ADC dedicated chip. At the same time in order to ensure the accuracy of the current, but also integrates a typical temperature drift of 20ppm, power of 3W high-quality sampling resistor. Up to 0.01% error. Specification: Main control IC: Cortex-M3 72MHz Display screen: OLED 128 x 64 50MHz (Refresh rate 50/s) Nternal storage memory life: About 30 years random storage algorithm Interface: USB-A, Micro USB, TYPE-C. Long-Term Stability: +/-50ppm/1000Hrs Power supply type: HID port 5V, other port self pickup electricity 3.7-24V. Maximum input voltage: 24V Working current: 4-15mA (Standby 3mA@5V) QC4.0 Test Sniffing: Support Power Delivery Test Sniffing: Support;Pro version support PD2.0 protocol packet capture Typical interface contact resistance: TYPE-C to TYPE-C 28m ohm/TYPE-A to TYPE-a 30m ohm. Line resistance evaluate: Support Offline data: 2560 x 5 group 512KBIT memory Dimension: 62 x 24 x 12mm Package Included: 1 x POWER-Z USB PD QC3.0 QC2.0 Tester
- ANALYSE - The POWER-Z allows you to analyse a devices charging speeds
- ANALYSE - The POWER-Z allows you to analyse a devices charging speeds
- DIAGNOSTIC - The POWER-Z will allow you to diagnose faults on mobile devices
- LIGHTWEIGHT - Slim and Lightweight design
- INTERFACE - USB-A, Micro USB, TYPE-C allowing muliple connections
- DISPLAY - This product comes with an OLED screen resolution of 128 × 64 giving useful information
| Color | Black |
|---|---|
| Model | powerZ |
| Brand Name | fonefunshop |
| Unit Count | 1.0 Count |
| Item Weight | 0.1 Kilograms |
| Manufacturer | fonefunshop |
| Power Source | Battery Powered |
| Item Dimensions | 5.91 x 2.76 x 0.2 inches |
| Measurement Type | Voltmeter |
| Warranty Description | 3 months from date of purchase |
| Minimum Operating Voltage | 24 Volts |
